Electrical Components

The inside of the box.

From the micro-mech of an MCB to the shutter in a socket — learn each part, its terminals, and the safety rule that keeps the following circuits safe.

The parts bin

22 components you'll meet in the guide

These are the building blocks of every circuit walkthrough — open a part to see its labelled anatomy, terminals and the rule that keeps it safe.

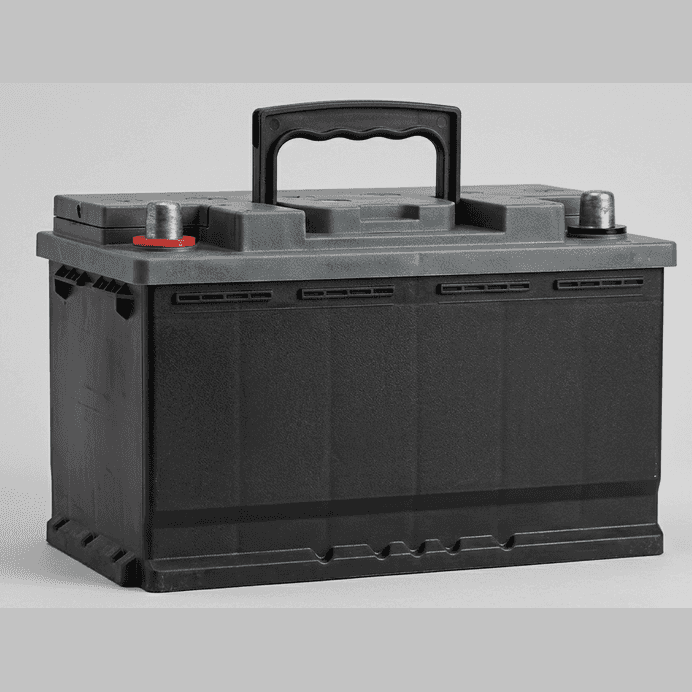

Photorealistic 12 V deep-cycle leisure battery
Real part

12 V Deep-Cycle Battery

Stores energy chemically — and gives it back at whatever current the load demands, right up to a fault.

Open anatomy →
Terminals
  • Positive (+) — red collar, the first connection made
  • Negative (−) — black collar, the last connection broken
  • Battery-to-battery links for series (24 V) or parallel (more Ah)
  • Plates and separators — lead-acid, or cells in a lithium pack
  • Electrolyte — flooded, AGM or gel
  • Case with venting — hydrogen is given off when charging
  • Terminal posts — tapered lead or threaded insert
  • State of charge and cycle life ratings (Ah, DoD, cycles)
Photorealistic arc fault detection device on a DIN rail
Real part

AFDD (Arc Fault Detection Device)

Listens for the crackle of a bad connection — and trips before the arc becomes a fire.

Open anatomy →
Terminals
  • L in / N in (top) — supply from the MCB or RCBO upstream
  • L out / N out (bottom) — the protected final circuit
  • Functional earth / neutral fly-lead on some designs
  • Microprocessor — samples current and looks for the arc signature
  • Series and parallel arc detection — broken conductor vs L-to-N tracking
  • Tripping relay — opens both poles on a detected arc
  • Toggle lever and test button
  • DIN-rail clip and cable shield
Photorealistic electric bell with the cover removed
Real part

Bell / Buzzer

A solenoid that hammers a gong: the load at the far end of the doorbell circuit.

Open anatomy →
Terminals
  • Two terminals on a simple AC bell or buzzer
  • Earth where the bell has a metal case
  • Gong — the metal dome or plate that makes the sound
  • Striker — the arm that hits it
  • Solenoid coil — pulls the armature in when energised
  • Contacts — break the circuit so the striker springs back and strikes again
  • Base and mounting holes
  • Bell transformer — steps 230 V down to 8–12 V
Photorealistic doorbell push button on a surround plate
Real part

Bell Push

Momentary by design: it conducts only while you hold it, which is why the bell rings once and stops.

Open anatomy →
Terminals
  • Two terminals on a simple bell push — one conductor in, one out
  • Some illuminated pushes need a neutral as well
  • Button cap — the part you press
  • Bezel or surround — the decorative ring and plate
  • Spring return — drives the contacts open again
  • Normally-open contacts — closed only while pressed
  • Fixing screws or a hidden clip
Photorealistic three-pole contactor with top and bottom screw terminals
Real part

Contactor (3-pole)

A switch thrown by an electromagnet — a small coil current commands a large motor current.

Open anatomy →
Terminals
  • 1/L1 · 3/L2 · 5/L3 — three line inputs (top)
  • 2/T1 · 4/T2 · 6/T3 — three load outputs (bottom)
  • A1 / A2 — the coil (control) supply
  • 13 NO / 21 NC — auxiliary contacts on the add-on block
  • Coil (A1–A2) — creates the field that pulls the armature in
  • Fixed and moving contacts — usually double-break, one pair per pole
  • Armature and return spring — drops the contacts out when the coil de-energises
  • Arc chutes — split and cool the arc drawn when a motor load breaks
  • Auxiliary contact block — extra NO/NC contacts for the hold-in circuit
  • DIN-rail clip — the spring foot that mounts it in the board

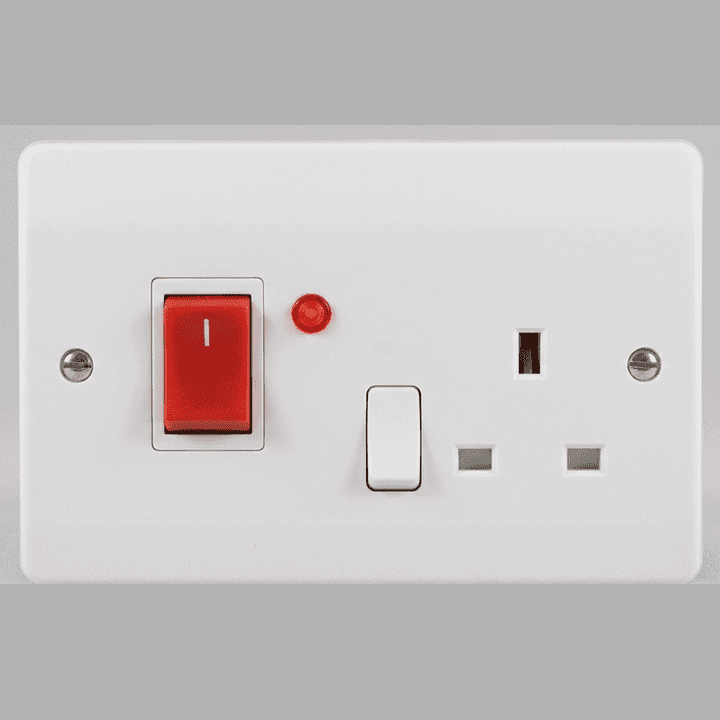

Photorealistic cooker control unit with 45 A switch and 13 A socket
Real part

Cooker Control Unit

A 45 A switch with a 13 A socket hung off it — the isolator for the biggest load in a kitchen.

Open anatomy →
Terminals
  • L / N supply in — from the cooker circuit's MCB
  • L / N out to the cooker connection unit or the appliance
  • Earth terminals, usually doubled up as a through connection
  • Socket terminals — fed from the switch on most designs
  • 45 A double-pole switch — isolates both conductors
  • Neon indicator — shows the switch is on
  • 13 A switched socket outlet
  • Cable entry and clamp for 6 mm² or 10 mm² conductors
  • Faceplate, usually a dual-size or grid plate

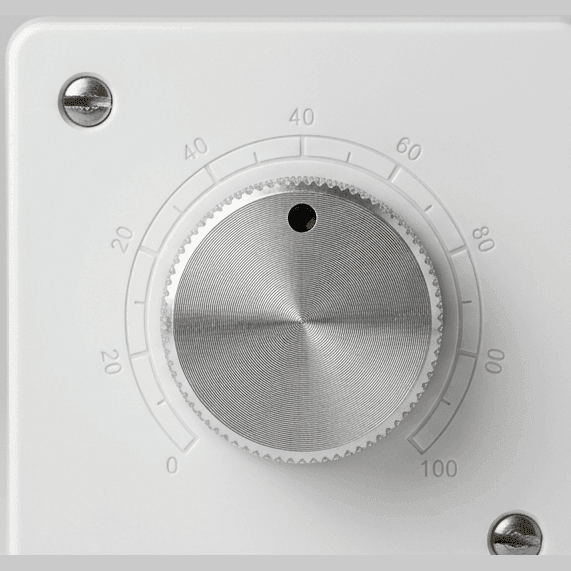

Photorealistic rotary dimmer switch
Real part

Dimmer Switch

It chops the mains waveform instead of just switching it — which is why the lamp has to match the dimmer.

Open anatomy →
Terminals
  • L — live in
  • Load — dimmed live out to the lamps
  • Earth — functional earth or plate earth as the design requires
  • Faceplate — one-gang or two-gang
  • Rotary knob or slider — the control you turn
  • Rear module — the electronics and the heat sink behind the plate
  • Fixing screws
  • Minimum-load adjustment on some designs

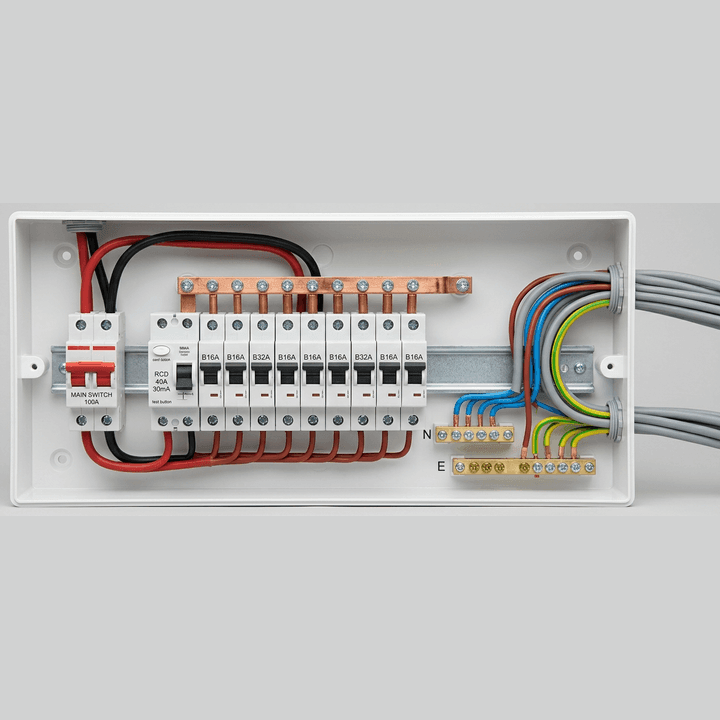

Photorealistic consumer unit with the cover removed
Real part

Distribution Board

Where the supply splits into final circuits, each with its own protection and its own switch.

Open anatomy →
Terminals
  • L-in and N-in from the meter and main earthing terminal
  • Circuit protective conductors to the earth bar
  • Neutral bar and earth bar — one way per circuit
  • Main earthing terminal and bonding connections
  • Enclosure — metal on modern boards, with a hinged cover
  • Main switch — a double-pole isolator for the whole board
  • Circuit breakers, RCBOs and RCDs on a DIN rail
  • Busbar — the copper strip feeding the protective devices
  • Neutral bar and earth bar
  • DIN rail and blanking modules
  • Circuit schedule and labels

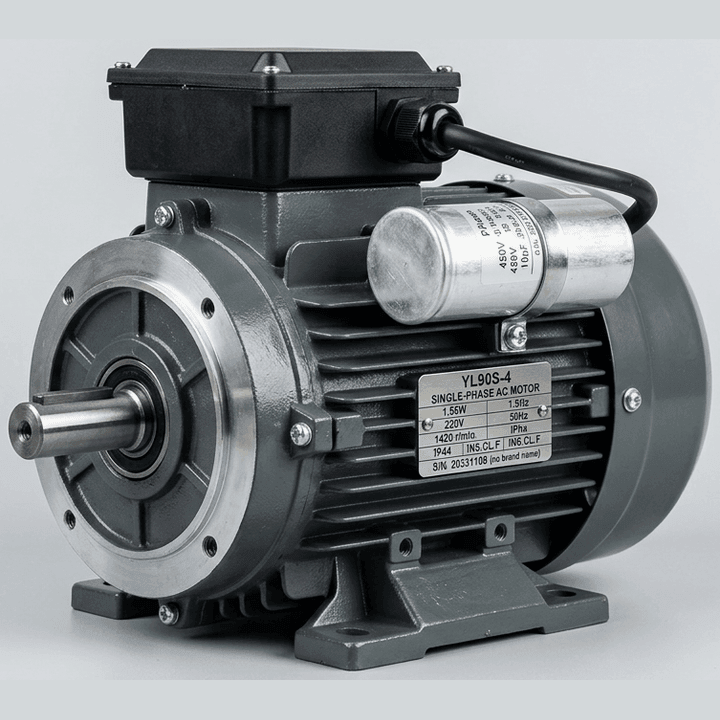

Photorealistic single-phase AC electric motor
Real part

Electric Motor

An inductive load that pulls several times its running current to start — protection has to allow for that.

Open anatomy →
Terminals
  • L and N on a single-phase motor
  • Earth to the motor frame
  • Start and run windings via the capacitor terminals
  • Terminal box — where the supply connects
  • Housing with cooling fins — the stator frame
  • Capacitor — gives the start (or run) winding its phase shift
  • Drive shaft and bearings
  • Mounting feet or flange
  • Rating plate — volts, amps, power factor, duty

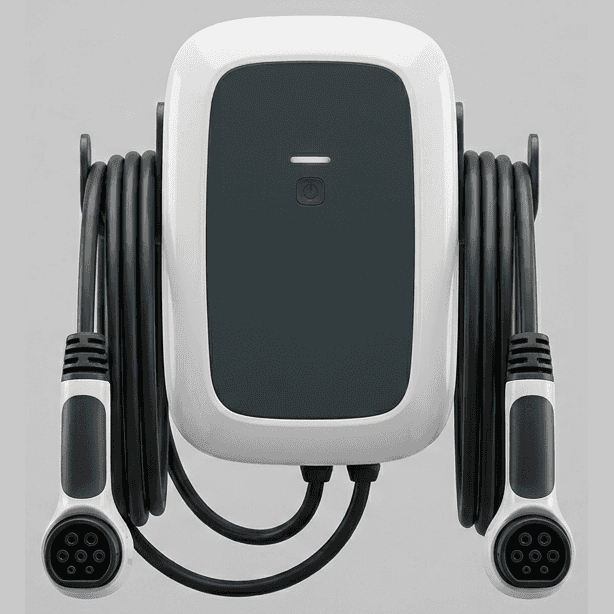

Photorealistic wall-mounted EV charge point with status display
Real part

EV Charge Point

A controlled socket that talks to the car before it ever energises the cable.

Open anatomy →
Terminals
  • L / N / E supply from a dedicated RCBO
  • CP (control pilot) — the signalling line to the vehicle
  • PP (proximity pilot) — tells the unit what cable is plugged in
  • Type 2 socket or tethered lead
  • Contactor inside the unit — energised only after the handshake
  • Control pilot circuit — sets the available current by PWM duty cycle
  • 6 mA DC leakage detection — required because DC blinds a Type A RCD
  • PEN-loss (open-circuit neutral) protection on PME supplies
  • LED status ring — standby, charging, fault
  • Cable entry and gland at the bottom of the enclosure
Photorealistic round junction box with the lid removed
Real part

Junction Box

Where cables meet. Every joint has to live in an enclosure you can still open in ten years’ time.

Open anatomy →
Terminals
  • Terminal block — one way per conductor
  • Earth — a linked earth terminal for every cable
  • Cable entries — knockouts or glands around the rim
  • Enclosure — round or rectangular, with a screw-down lid
  • Terminal block — a strip connector, one screw per conductor
  • Cable entries — knockouts or glands that grip the sheath
  • Lid fixing screw — keeps the lid on and the joint enclosed
  • Base fixing holes — screws that anchor the box to the joist or wall

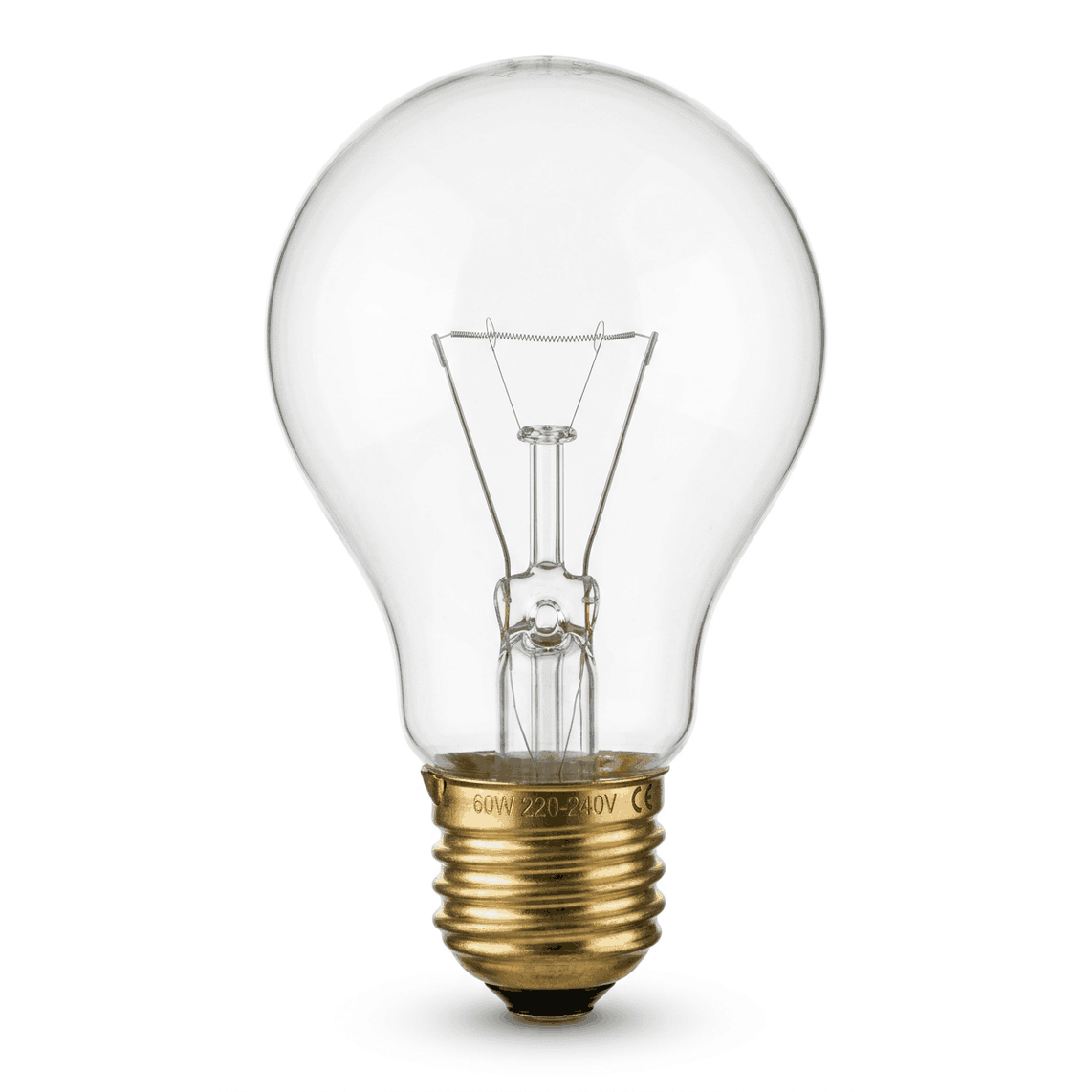

Photorealistic lamp / bulb
Real part

Lamp / Bulb

Turns live current into light — and the perfect first circuit to understand the live/neutral path.

Open anatomy →
Terminals
  • Live screw / centre contact
  • Neutral / phase return (bayonet or edison)
  • Earth (metallic fittings only)
  • Filament / chip — the light source
  • Glass envelope — shape and gas atmosphere
  • Cap / base — bayonet (B22) or Edison screw (E27)
  • Centre contact + outer thread — live and neutral lands
Photorealistic miniature circuit breaker
Real part

Miniature Circuit Breaker

The over-current guard on every final circuit — trips when current exceeds its rating.

Open anatomy →
Terminals
  • L-in (top)
  • L-out (bottom)
  • Fix aperture on top / Bottom DIN clip
  • Toggle lever — reset after a trip
  • Bimetal / thermal trip — slow overloads
  • Magnetic trip — fast short-circuits
  • Terminals — L-in (top) and L-out (bottom)
  • DIN-rail clip — snap onto the board
Photorealistic one-gang one-way light switch
Real part

One-Way Switch

The simplest control there is: it makes or breaks a single conductor — and that conductor has to be the live one.

Open anatomy →
Terminals
  • COM — common, the conductor arriving from the supply
  • L1 — switched live out to the lamp
  • Earth — plate earth terminal on metal faceplates
  • Faceplate — the visible cover screwed to the back box
  • Rocker (or dolly) — the moving contact you press
  • Two fixing screws — top and bottom, into the back box lugs
  • Snap-action mechanism — springs the contacts open or closed in milliseconds
  • Rear terminals — cage clamps or screw terminals for the conductors

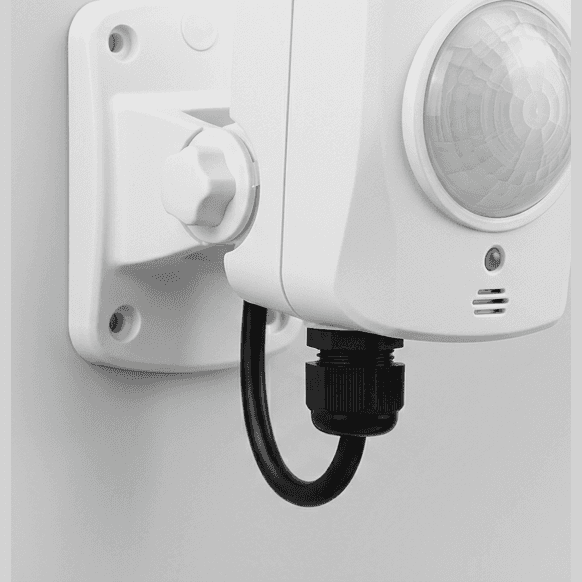

Photorealistic wall-mounted PIR motion sensor with fresnel lens
Real part

PIR Motion Sensor

Sees changes in infrared, not movement — it detects a warm body crossing its beams.

Open anatomy →
Terminals
  • L — permanent live in
  • N — neutral (most mains sensors need one)
  • L' or SL — switched live out to the load
  • Some designs add a permanent-live loop or an override input
  • Fresnel lens — splits the view into beams
  • Pyroelectric element — generates a voltage when IR flux changes
  • Amplifier and comparator — decides what counts as a detection
  • Time (TIME) and light level (LUX) adjustment dials
  • Adjustable swivel bracket
  • Cable gland and terminal block
Photorealistic portable generator set with control panel
Real part

Portable Generator Set

An engine turning an alternator — a separate source that must never touch the supply network.

Open anatomy →
Terminals
  • 230 V socket outlets on the control panel
  • Earth terminal on the frame
  • 12 V DC output on some sets
  • Changeover switch or interlocked breaker at the installation
  • Engine — diesel or petrol, governed to hold 50 Hz
  • Alternator — brushless, with an AVR holding the voltage
  • Control panel with sockets, breakers and meters
  • AVR (automatic voltage regulator)
  • Anti-vibration mounts and base frame
  • Exhaust muffler and fuel tank
Photorealistic residual current device (rcd)
Real part

Residual Current Device (RCD)

Watches the balance between live and neutral — any leakage to earth trips it in milliseconds.

Open anatomy →
Terminals
  • L-in (top)
  • N-in (top)
  • L-out (bottom)
  • N-out (bottom)
  • Test button 'T' — simulates a leakage
  • Trip indicator flag — shows the pole that opened
  • Summation transformer — compares L and N current
  • Solenoid — releases the mechanism on imbalance
  • L, N terminals — in (top) and out (bottom)
Photorealistic socket outlet (3-pin uk type g)
Real part

Socket Outlet (3-Pin UK Type G)

The 3-pole interface that lets you plug in an appliance — and the reason your board has RCD protection.

Open anatomy →
Terminals
  • Live (L)
  • Neutral (N)
  • Earth (E)
  • Terminal L/N/E screw-block behind the face
  • Shutter — blocks the live and neutral holes
  • Live/neutral pins — carry the working current
  • Earth pin — the longest, opens the shutter
  • Terminal block — live, neutral, earth lands

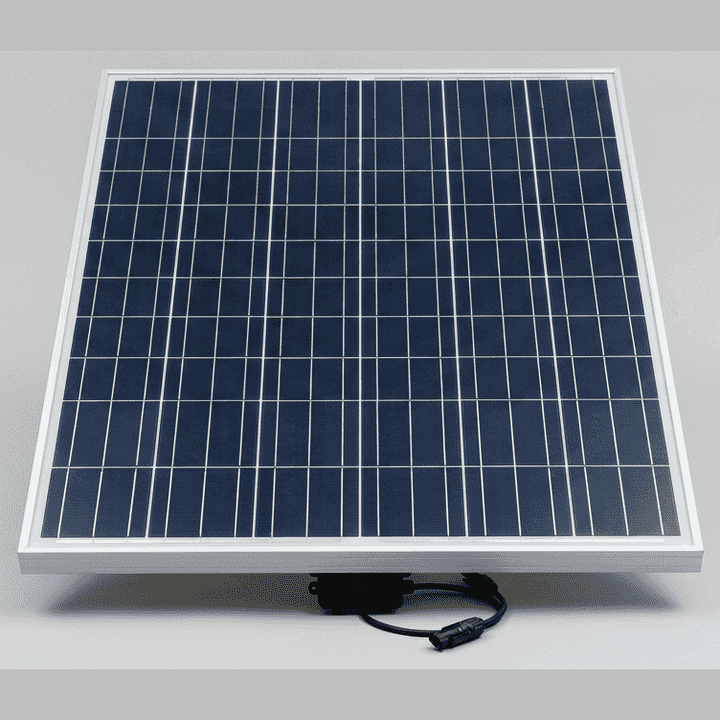

Photorealistic solar photovoltaic panel module
Real part

Solar PV Panel

Cells in series make the voltage, cells in parallel make the current — the frame carries neither.

Open anatomy →
Terminals
  • Positive (+) and negative (−) in the junction box
  • Bypass diodes — one per cell string, inside the box or laminate
  • Functional earth bond to the module frame
  • Tempered glass front — 3–4 mm, carries the mechanical load
  • Encapsulant (EVA) — seals the cells out of the weather
  • Mono or poly cells — typically 60 or 72, cut into half or third cells
  • Busbar and finger ribbons — collect current off each cell
  • Backsheet — the insulating rear layer
  • Junction box with bypass diodes and MC4 leads
Photorealistic mechanical timer switch with dial and selector
Real part

Timer Switch

A switch that works to a clock instead of a finger — outdoor lighting that goes off on its own.

Open anatomy →
Terminals
  • L — permanent live to power the timer
  • N — neutral, needed by the electronics or the clock motor
  • Load — switched live out to the lamp
  • Earth — plate earth on metal plates
  • Faceplate — usually a deeper plate than a plain switch
  • Dial or digital display — the programme you set
  • Override / boost button — forces the output on for the rest of the set period
  • Selector — ON / AUTO / OFF on mechanical timers
  • Rear terminals, including the neutral the electronics need

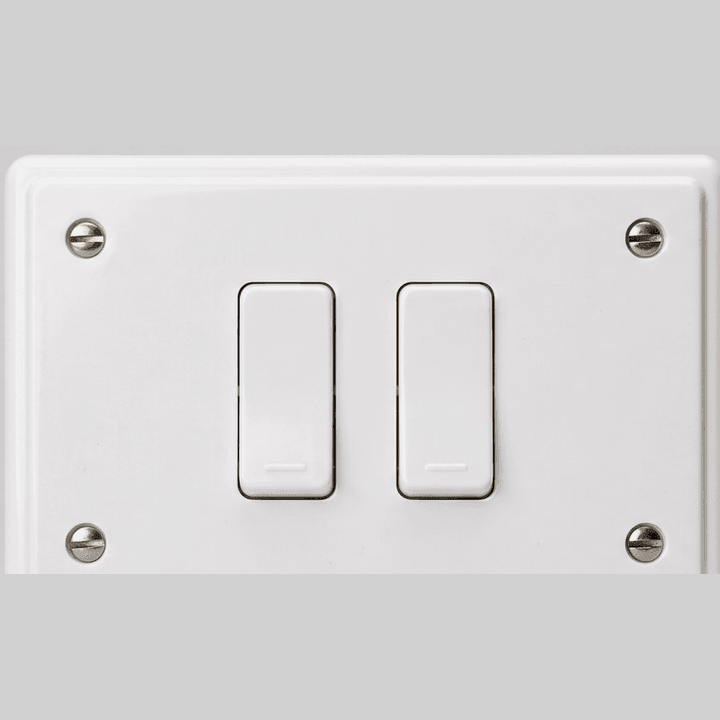

Photorealistic two-gang two-way light switch
Real part

Two-Way Switch

Three terminals instead of two: two of these and a pair of strappers let you work one light from two places.

Open anatomy →
Terminals
  • COM — common, from the supply or to the lamp
  • L1 — strapper to the other switch
  • L2 — the second strapper
  • Earth — plate earth where a metal plate is used
  • Faceplate — one or two gang, two-way on every gang
  • Rockers — one or two, each switching between L1 and L2
  • Four fixing screws on a two-gang plate
  • Three terminals per gang: COM, L1, L2
  • Strappers — the two conductors running between the switches

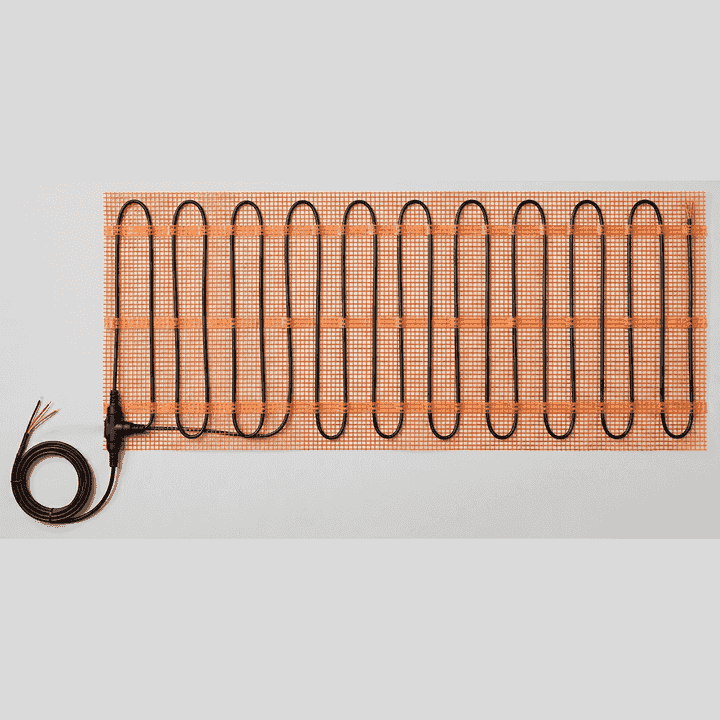

Photorealistic electric underfloor heating mat with serpentine cable
Real part

Underfloor Heating Mat

A fixed resistance laid in a mesh — the whole floor becomes the heater, slowly.

Open anatomy →
Terminals
  • Cold tail — the mains lead that runs to the thermostat
  • Factory joint between the cold tail and the heating cable
  • Floor probe (sensor) leads — low voltage, to the thermostat
  • Earth braid or screen, bonded at the thermostat
  • Heating cable — a series resistance in a fluoropolymer jacket
  • Fibreglass mesh backing — sets the spacing
  • Factory joint — the only joint allowed in the screed
  • Cold tail — the unheated lead back to the connection box
  • Floor temperature probe in its own conduit

Components understood. Wire the circuit.

Now take an MCB, lamp and socket into ElectraSim and run the RCD socket walkthrough with live fault simulation.

Follow us on FacebookContact us
