Which circuit simulator fits the work you need to do?
Nine tools, six jobs, one honest readout. Compare practical wiring, engineering analysis, guided teaching, sharing, offline work and the friction between you and a first circuit.
First-party research reviewed 9 tools 26 source pages
Signal snapshot
Different tools light up different parts of the board.
These are the clearest task-fit signals from the official product pages. They are deliberately narrower than an overall ranking.
S-02ANALYSIS
Engineering numbers
CircuitLab + Multisim Live
SPICE, frequency-domain work, plots and component-level analysis are their natural territory.
S-03TEACHING
Managed learning
Tinkercad + DCACLab
Lessons, assignments, classrooms and beginner electronics make the teaching workflow explicit.
Interactive matrix
Tune the bench to your task.
Use the lens buttons to isolate a job, sort the readout, then inspect any tool for the evidence behind its signal.
Strong fitUsefulLimitedNot confirmedScores describe documented fit, not quality.
Showing all 9 tools.
Tool / intent
Wiringwiring
Analysisanalysis
Teachingteaching
Sharingsharing
Offlineoffline
Accessstart
Bench
ElectraSimInstallation-first
This benchStrong fitMCBs, RCDs, RCBOs, switches, sockets, conductors and faults are the product centre.
LimitedTopology and fault behaviour are modelled; it is not a SPICE solver or calibrated instrument.
Strong fitGuided circuits, challenge mode, diagnosis work and a browser-first learning flow.
Strong fitLocal autosave plus JSON, SVG, PNG and shareable circuit URLs.
Strong fitThe installable web app can continue offline after the first successful visit.
Strong fitThe simulator opens directly with no sign-up or subscription gate.
MechSimulator House WiringDirect wiring rival
Strong fitThe product page explicitly covers consumer units, MCB/RCD/RCBO protection, cables, sockets and domestic layouts.
UsefulIt documents live voltage drop, current, power and verification readouts rather than full electronics analysis.
UsefulExamples, a user guide, quizzes and an electrician-style verification workflow are documented.
UsefulThe workbench advertises share, save and open controls; the public page does not define a cloud permission model.
Not confirmedThe public product page does not document an offline or installable mode.
Strong fitThe public tool is presented as a free, directly usable browser simulator.
UK Electrical SIMDomestic training
Strong fitDomestic layouts, components, testing and troubleshooting are the stated product direction.
LimitedThe public overview is about training workflows, not numerical electronics or SPICE analysis.
UsefulMode-led practice and progress-oriented account access are documented.
Not confirmedThe public pages reviewed do not confirm project sharing or file export.
Not confirmedNo offline mode is documented on the public landing or subscription pages.
LimitedRegistration is part of the workflow, with a limited tier and a paid full-access tier.
CircuitLabEngineering analysis
LimitedIts documented purpose is general electronic system design, not installation wiring conventions.
Strong fitDC, time-domain, frequency-domain, mixed-mode simulation and signal plotting are documented.
UsefulA free interactive electronics textbook and student memberships support learning.
Strong fitUnique circuit URLs and PDF, PNG, EPS and SVG schematic exports are documented.
LimitedThe reviewed official pages describe a browser service; no full offline workflow is promised.
UsefulA visitor can inspect the free textbook and try paths, while larger work is membership-based.
EveryCircuitAnimated electronics
LimitedThe official positioning is analog and digital electronics rather than domestic installation work.
UsefulReal-time simulation, signal animation and dynamic oscilloscope views are documented.
UsefulPublic circuits and visual examples make it approachable for exploration.
UsefulA public circuit gallery and public/private sharing model are described.
LimitedMobile apps exist, but a full browser-offline workflow is not documented.
UsefulThe free tier is easy to try, with a five-component limit for own circuits.
Falstad / CircuitJS1Open circuit theory
LimitedThe official overview describes an electronic circuit simulator, not installation-specific parts or wiring rules.
UsefulAnimated current/voltage, scopes and editable component parameters support circuit-theory analysis.
UsefulA large built-in Circuits menu and example library make it effective for demonstrations.
Strong fitCircuit description files and shareable circuit links are documented.
Strong fitThe official page links to standalone offline versions.
Strong fitThe hosted simulator opens directly and is free and open source.
Tinkercad CircuitsClassroom electronics
LimitedIts official circuits pages position it around electronics, breadboards and coding rather than house wiring.
LimitedUseful simulation for beginner electronics, without the deeper analysis scope of SPICE tools.
Strong fitFree lessons, classroom workflows and beginner-friendly electronics education are central.
UsefulClassroom and public-design workflows are part of the Tinkercad ecosystem.
LimitedThe reviewed official pages describe a web app; offline editing is not confirmed.
UsefulThe app is free to use, though saved work and classes are account-managed.
DCACLabManaged virtual lab
UsefulIt teaches practical electronics and breadboard work; domestic installation is not the stated centre.
UsefulOscilloscope, meters, RMS and real-time simulation features are documented.
Strong fitAssignments, classrooms and student-progress workflows are explicit product features.
UsefulPublic circuits and hosted simulations can be shared with others.
LimitedThe public product and pricing pages describe an online lab; offline use is not confirmed.
LimitedThe lab is account-based, with a trial and paid plans for continued use.
Multisim LiveSPICE and lessons
LimitedThe official product is an online SPICE electronics simulator, not an installation-wiring trainer.
Strong fitSPICE simulation, schematic capture and circuit analysis are the stated purpose.
UsefulFeatured circuits, lessons and community content support classroom exploration.
UsefulPublic circuits and community discovery are documented while the service remains live.
LimitedThe online service is not an offline product; desktop transition is separate.
LimitedA free sign-up path exists, but the published shutdown date changes the practical choice.
Instrument view
See the shape, not just the score.
The radar keeps the selected tool's trade-offs visible. The bars below show why a single overall winner would be a poor conclusion.
PLOT AElectraSimselected profile
PLOT BDocumented fit vectorsaverage of six signals
Source ledger
Every signal has a paper trail.
We checked product pages, documentation, pricing or subscription pages, classroom material and official repositories. “Not confirmed” means the reviewed public source did not say.
01ElectraSimInstallation-first

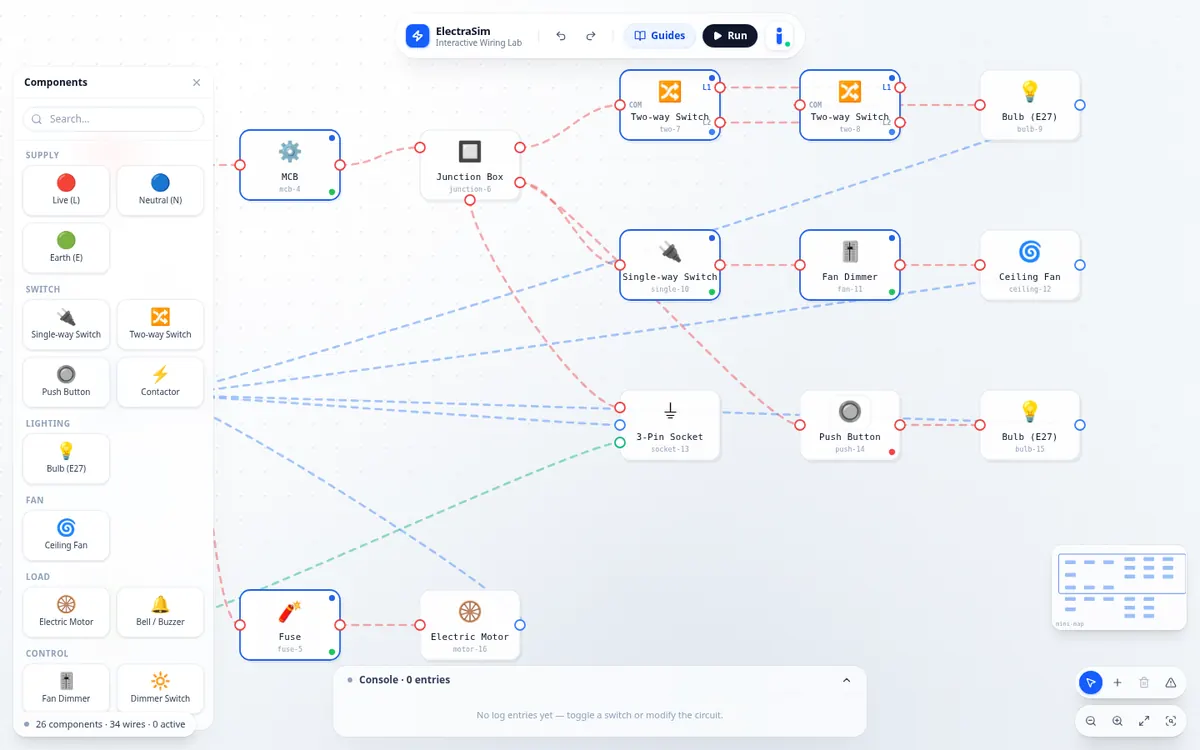

ElectraSim starts with the objects and conductor roles learners meet on a real domestic board: protection, switching, sockets, loads, line, neutral and earth. Its simulator makes energised paths and common wiring faults visible without requiring live equipment.
02MechSimulator House WiringDirect wiring rival
MechSimulator is the closest like-for-like browser competitor in this review. Its public page describes consumer units, realistic multicore cables, ring and radial circuits, switch layouts, cable sizing, voltage drop and verification checks.
03UK Electrical SIMDomestic training
UK Electrical SIM is aimed directly at domestic training. Its current public site presents a Domestic SIM with final-testing work, plus off-grid and fault-finding areas marked as in progress or under development.
04CircuitLabEngineering analysis
CircuitLab is the analysis-heavy option in this set. Its official material describes in-browser schematic capture, DC, time-domain and frequency-domain simulation, mixed-mode circuits, configurable plots and presentation-quality exports.
05EveryCircuitAnimated electronics
EveryCircuit focuses on immediacy: animated current and voltage, real-time controls, analog and digital components, and an oscilloscope. It is a strong visual electronics companion, not an installation-wiring trainer.
06Falstad / CircuitJS1Open circuit theory
Falstad makes circuit behaviour legible through moving current dots, voltage colours, switches, scopes and editable examples. It is unusually frictionless for theory exploration, while its interface is not organised around domestic installation practice.
07Tinkercad CircuitsClassroom electronics
Tinkercad Circuits is the natural choice when the lesson is about breadboards, Arduino, micro:bit or code. Its broad education ecosystem is a strength, but consumer-unit protection and live-neutral-earth installation logic are outside its stated focus.
08DCACLabManaged virtual lab
DCACLab combines an electronics workbench with meters, a three-channel oscilloscope, public circuits and explicit classroom assignments. That institutional layer is valuable when a teacher needs workflow and progress, but it adds account and subscription overhead.
09Multisim LiveSPICE and lessons
Multisim Live is worth including because it is a familiar SPICE-and-teaching reference, but its own current banner says the online simulator will shut down on 15 September 2026 as the future moves to desktop Multisim.
METHOD / M-01
How to read this bench
- Primary sources first. Claims come from the providers' own public product, documentation, pricing, classroom or repository pages.
- Task-based signals. A five means “strongly aligned with this job,” not “better software.”
- No silent negatives. An undocumented capability is marked “Not confirmed,” never assumed absent.
- Freshness matters. Prices, limits and availability can change; revisit the linked source before making a purchasing or curriculum decision.
Bench notes
Questions that change the choice.
Short answers for the moments when two tools look similar on a feature list.
Q-01Which simulator is the closest match for practical house wiring?
ElectraSim and MechSimulator are the closest browser matches in this review. UK Electrical SIM is also directly aimed at domestic training, but its current workflow is account-based and several modes are marked as in progress. The right choice depends on whether you value an instant, offline-capable PWA or a broader verification-oriented workbench.
Q-02Why are the scores not an overall ranking?
A SPICE simulator, a breadboard classroom and a domestic wiring trainer solve different problems. The six signals on this page describe fit for a specific task, based on what each provider publishes. They do not measure solver accuracy, speed, or product quality against a common benchmark.
Q-03Is ElectraSim a replacement for CircuitLab or Multisim?
No. ElectraSim is the more direct fit for practical installation wiring, protection and fault reasoning. CircuitLab and Multisim are better aligned with engineering schematics, SPICE-style analysis and plots. Multisim Live is also publishing a September 2026 shutdown notice, so check the current desktop transition before starting a new course around it.
Q-04Can any of these tools certify a real installation?
No. A simulator is an educational or design aid, not proof of compliance or safe isolation. Real work still needs competent design, manufacturer instructions, the applicable regulations, inspection, calibrated testing and professional judgement.
Close the loop
Try the wiring-first path on your own circuit.
Open a guided circuit, change a conductor or protective device, and watch the state move. No account and no download required.
